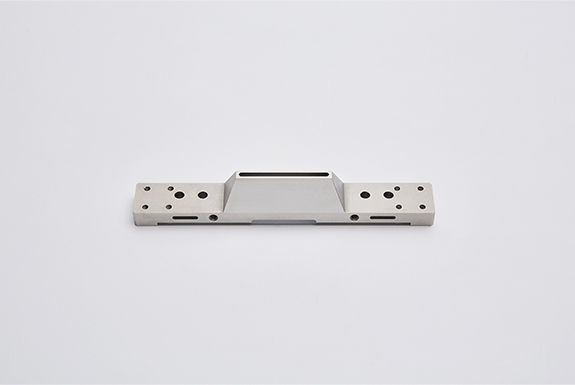

Adhesion jig

Plays the role of fixing the tap part, which is an external and current path, to the positive/negative electrodes in the secondary battery tab welding process
Product Name Adhesion jig
Materials SKD11
Manufacturing Tolerance ±0.02
Purpose Plays the role of fixing the tap part, which is an external and current path, to the positive/negative electrodes in the secondary battery tab welding process
SELLING POINT
  • Refer to the modeling during product processing and check whether ass’y. is interfering.
  • The inlet part is the central point, so tolerance is important when machining.
