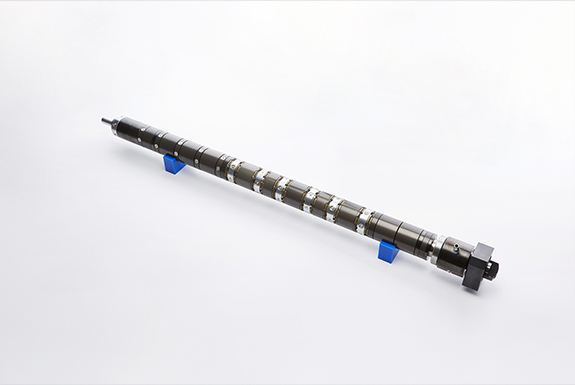

PX-SHAFT

In this secondary battery winding machine preparation process, the cell of the positive/negative disk is cut through the knife unit and then sorted by size using pressure. Afterward, it is bound in roll form to prevent slipping or loosening.
Product Name PX-SHAFT
Materials SCM440, etc.
Manufacturing Tolerance Pressure test under 7%
Purpose In this secondary battery winding machine preparation process, the cell of the positive/negative disk is cut through the knife unit and then sorted by size using pressure. Afterward, it is bound in roll form to prevent slipping or loosening.
SELLING POINT
  • Roundness and concentricity are important in product processing.
  • Process Chart: Design - Machining - Assembly - Inspection/Testing - Delivery
